⚡ Electric Hose Reel Box — Battery-Powered Auto Rewind, Compatible with DeWalt 20V MAX
The Relhost RW-24-E Electric Hose Reel Box combines the elegant decorative metal cabinet design of the RW-24 with battery-powered automatic hose retraction. Simply press a button and watch your hose wind back effortlessly — no cranking, no effort. Compatible with DeWalt 20V MAX batteries (not included).
⚠️ Important: Garden hose and DeWalt battery are NOT included. The cabinet accommodates up to 125ft x 5/8" standard hose (sold separately).

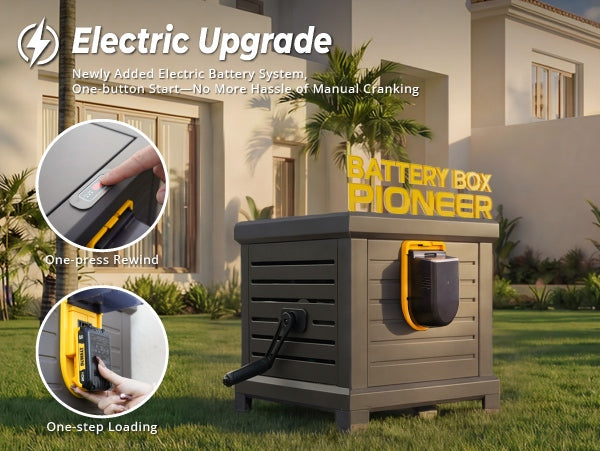

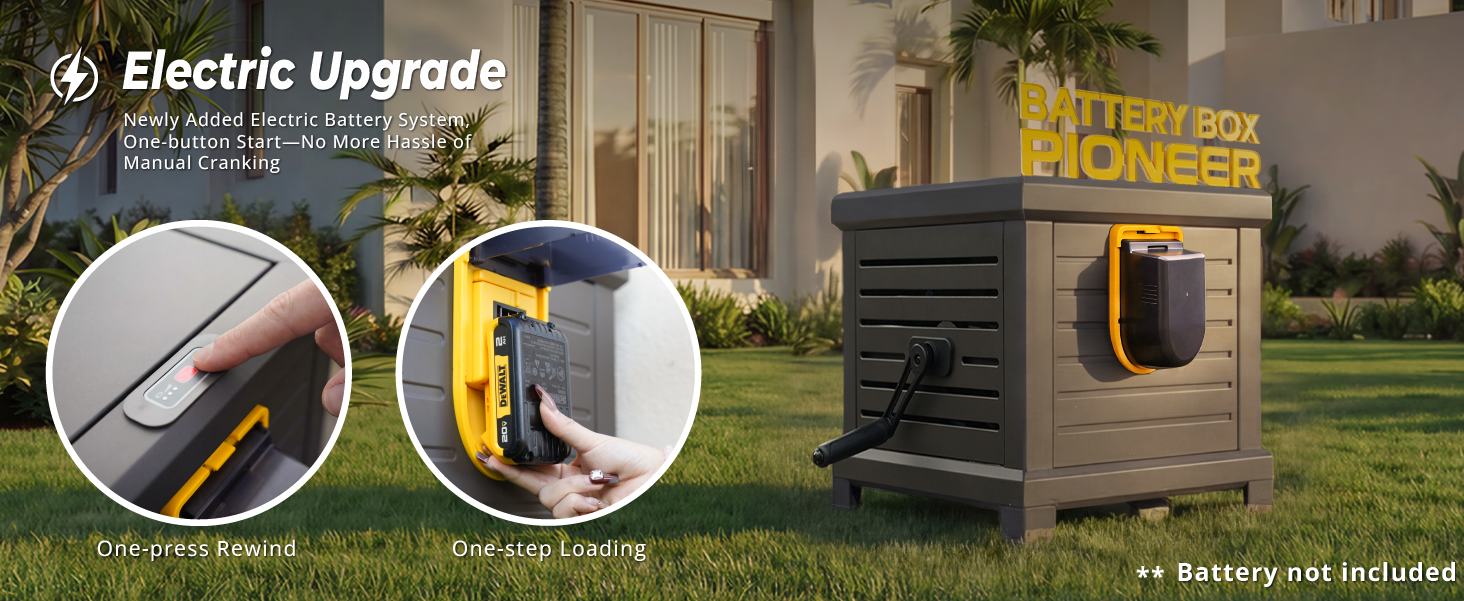

⚡ One-Button Electric Auto Rewind
Press the button on the control panel to start automatic hose retraction. Press again to stop at any time. The built-in self-protection system automatically stops rewinding if an obstacle is detected — clear the obstacle and press again to continue. Do NOT hold the hose firmly while it is being fed in.

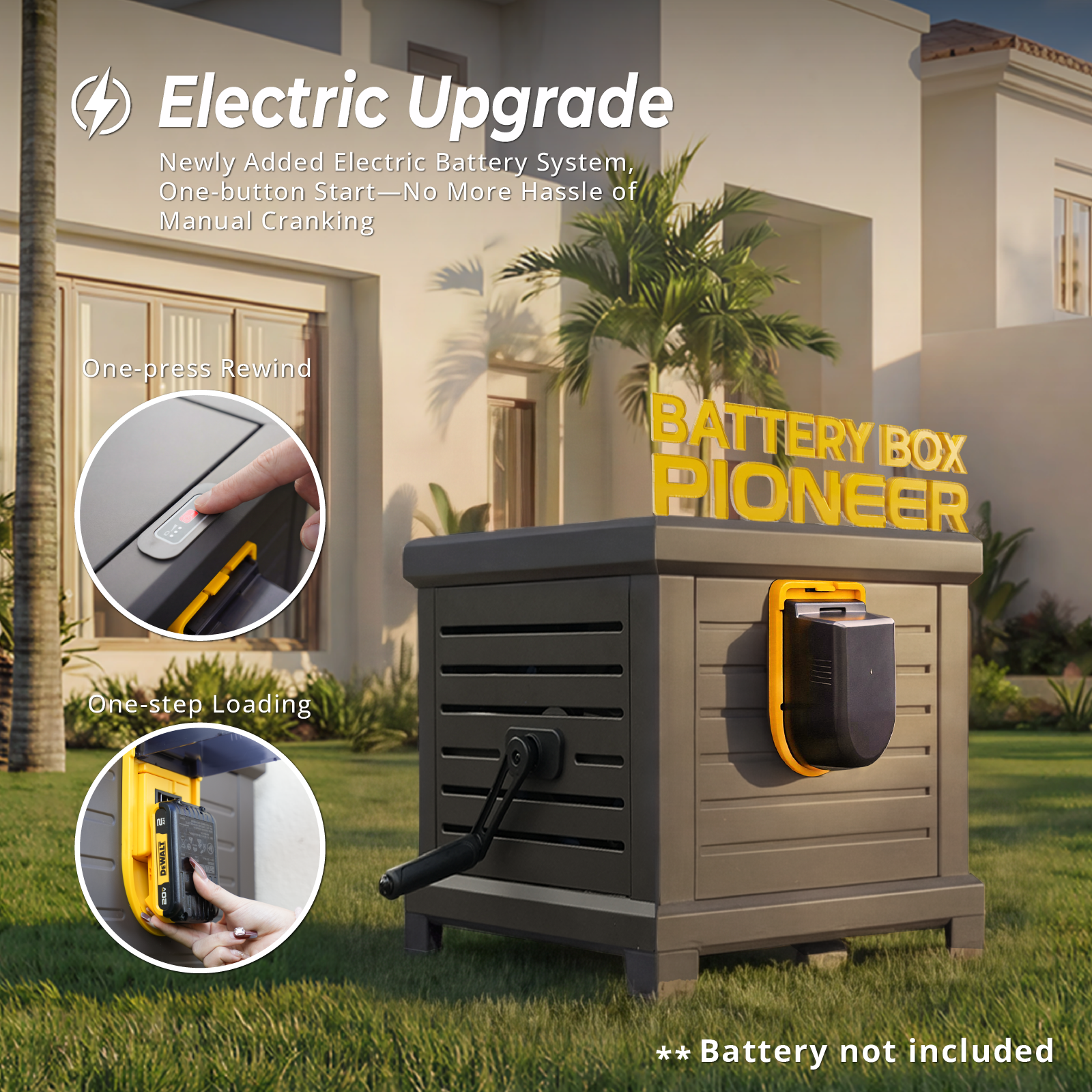

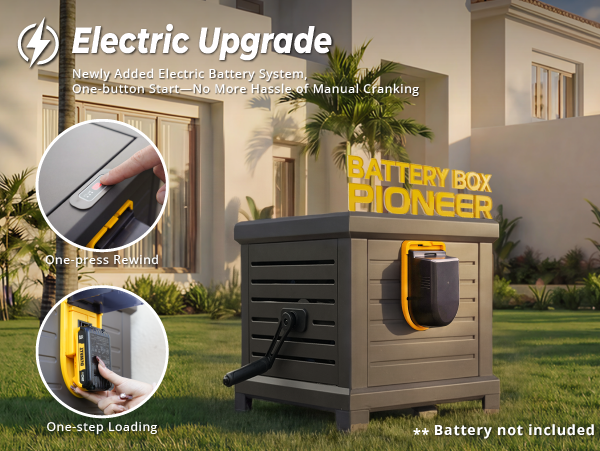

🔋 Compatible with DeWalt 20V MAX Batteries
Works with DeWalt XR DCB203 (20V Max 2.0Ah 36Wh) and DeWalt XR DCB182 (20V Max 4.0Ah 72Wh) batteries. Battery and charger are not included. Insert the battery into the battery holder, close the hatch until it clicks. Always keep the battery hatch closed during use. Remove the battery when not in use.
🔋 Battery Charge Indicator
The LED panel on the control panel displays real-time battery status after starting the hose feed:
- Red + Yellow + Green = 70–100% charged
- Red + Yellow = 30–70% charged
- Red only = 0–30% charged
- Error light (⚠️) solid = internal circuit abnormal
- Error light (⚠️) flashing = battery temperature too high — allow to cool before use
🔄 Manual Crank Backup
In addition to electric rewind, the included crank handle allows full manual operation. To rewind manually, walk the hose end back toward the reel so the hose forms a U-shape in front of the unit — this assists smoother rewinding.

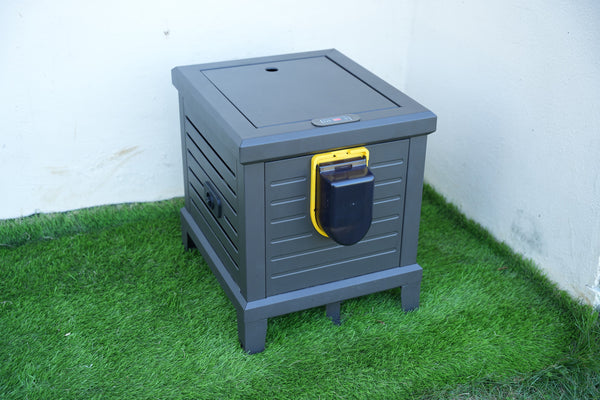

🛡️ Premium Metal Cabinet Construction

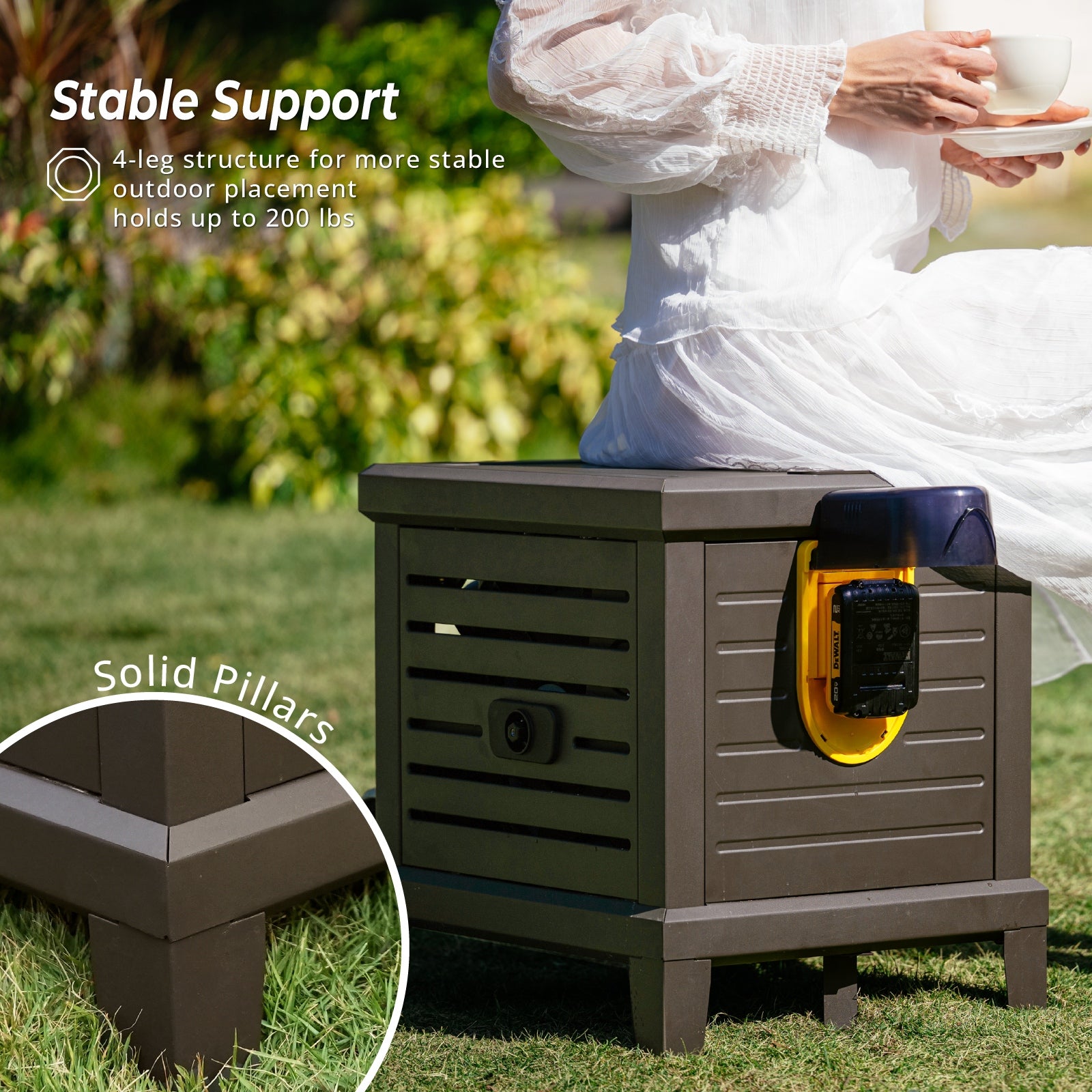

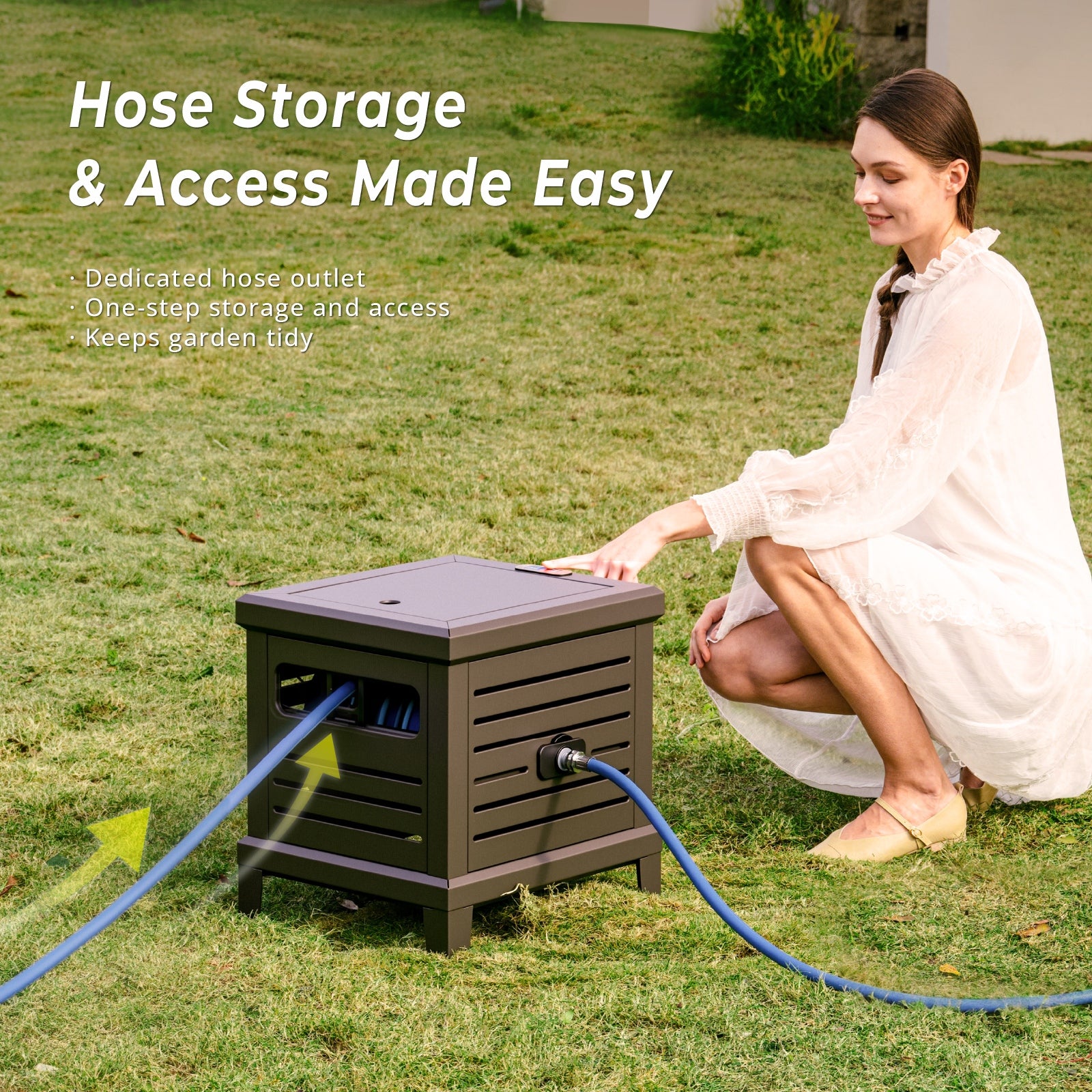

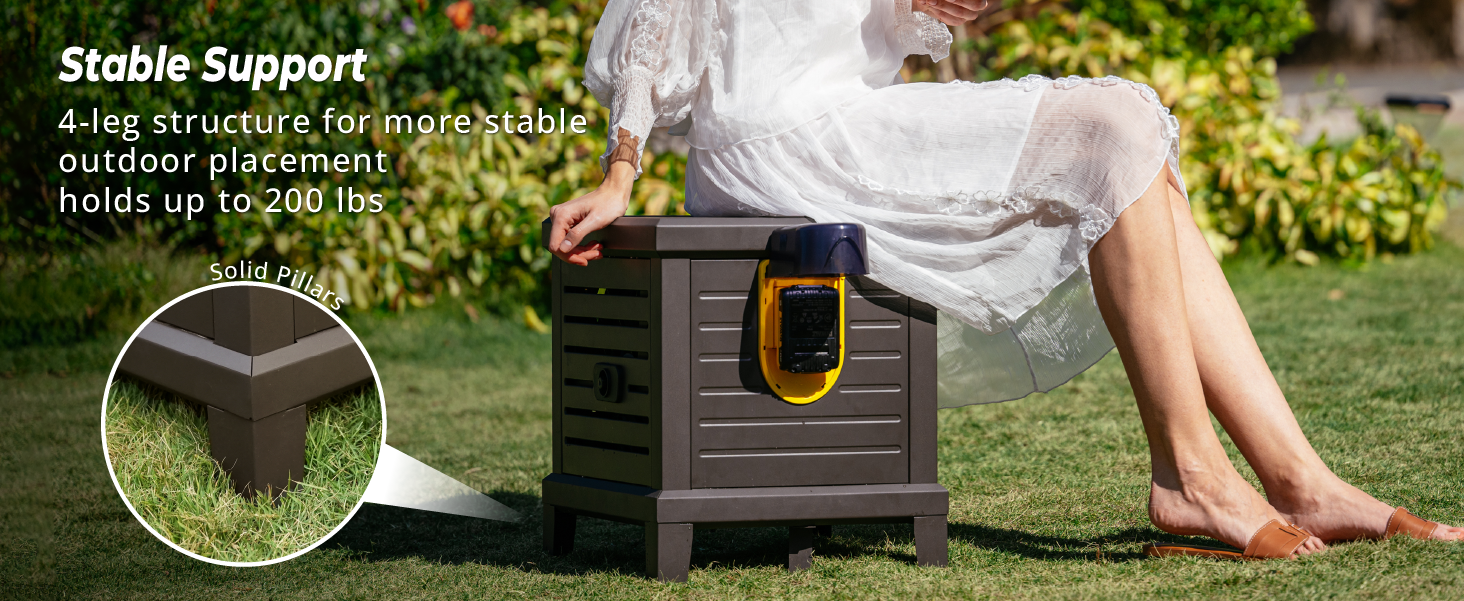

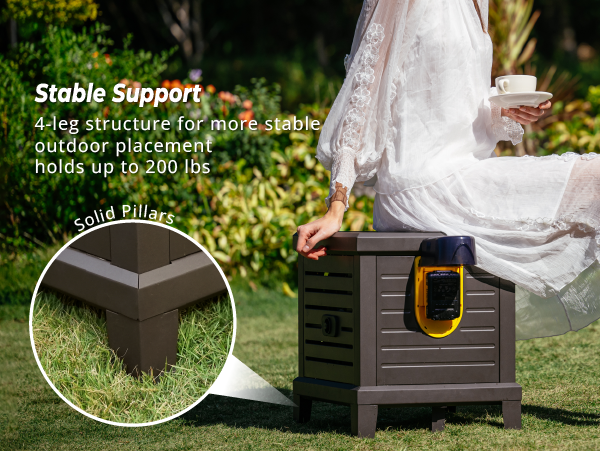

Built from high-grade, rust-resistant steel with a refined decorative finish. The enclosed cabinet design protects your hose from UV damage, freezing temperatures, and debris. Free-standing on four legs — no wall mounting required.

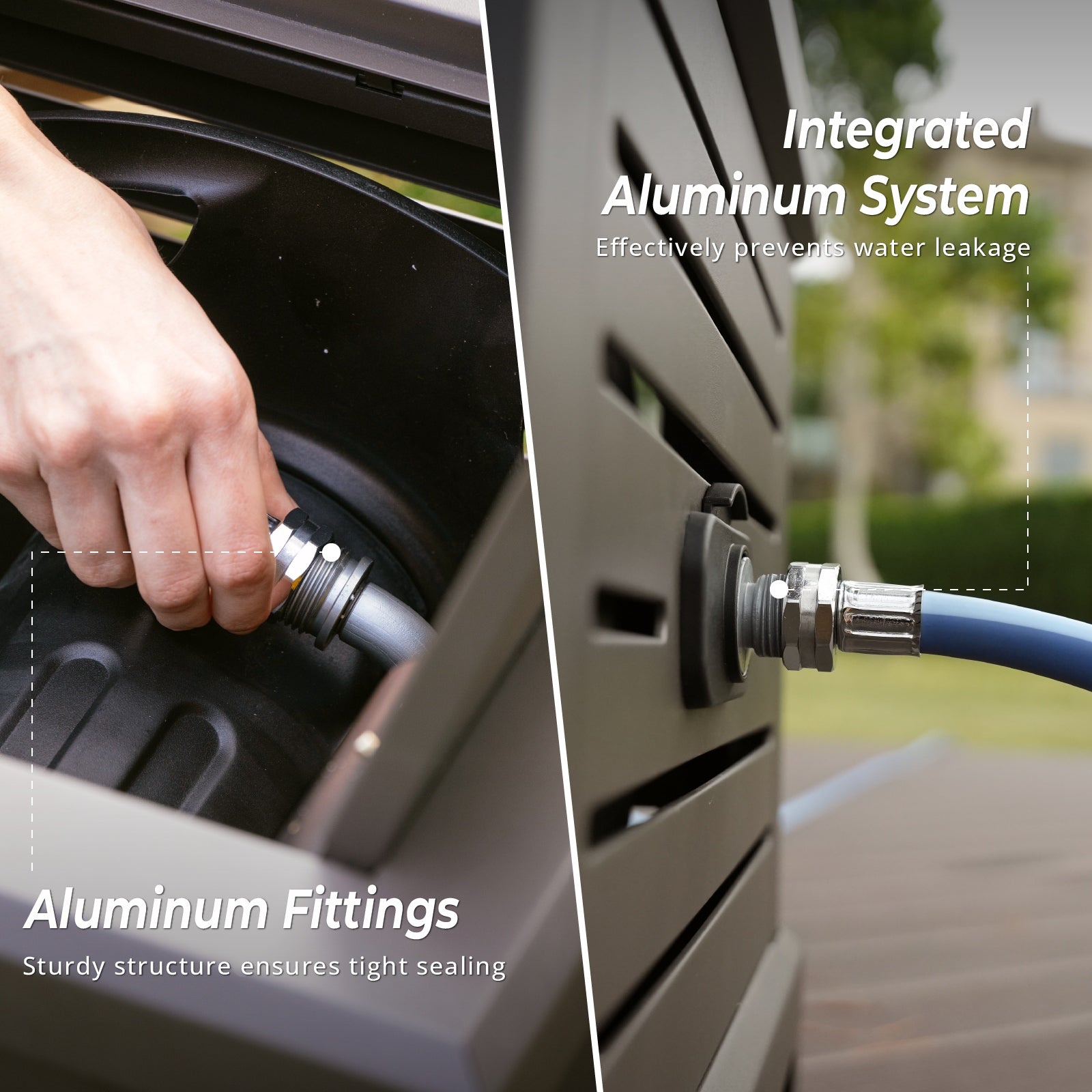

💧 Precision Aluminum Water System
Crafted with a corrosion-resistant aluminum core, ensuring a secure, leak-free connection and consistently smooth water flow for every outdoor task. Max working pressure: 100 psi.

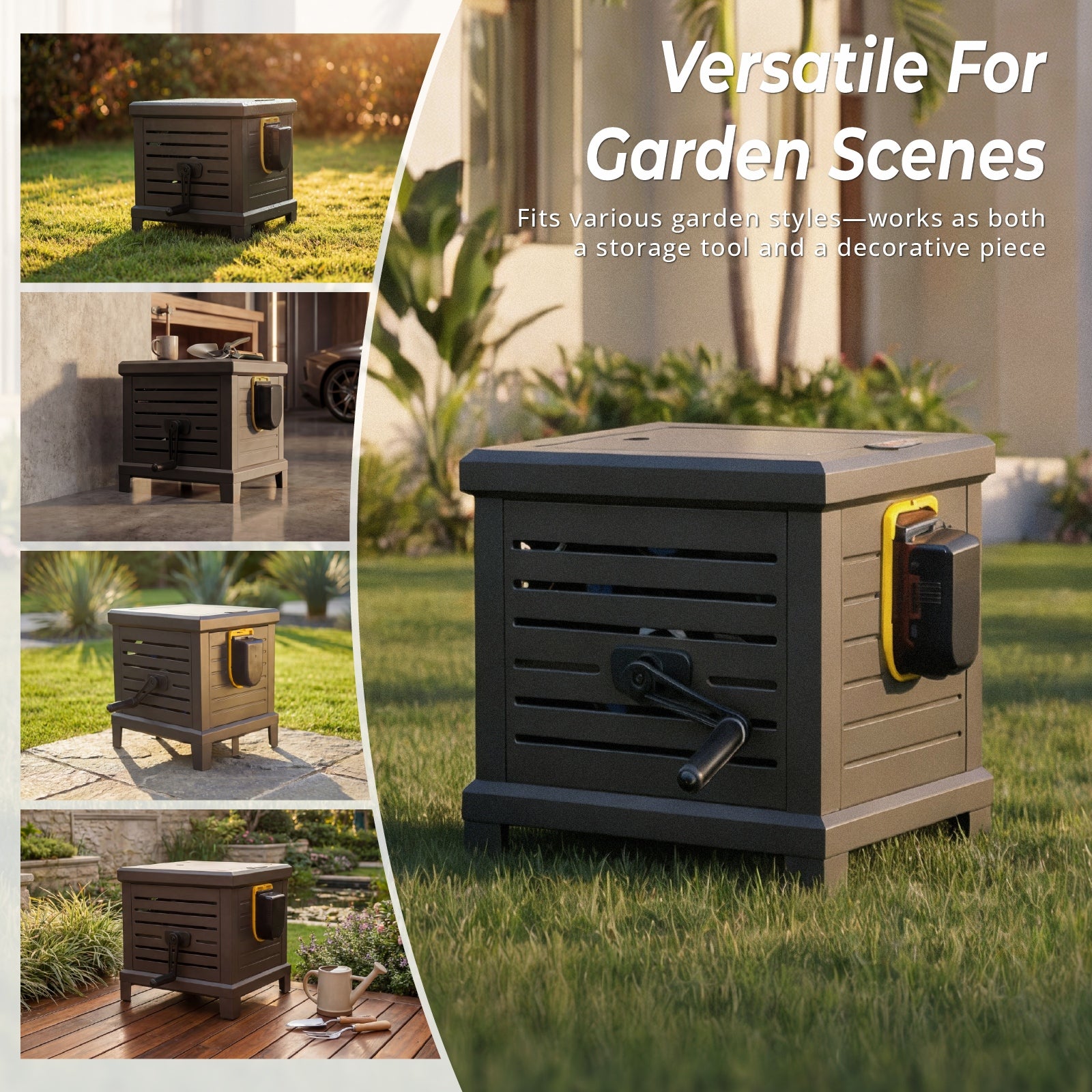

🏕️ Ideal For
- 🏡 Backyard & garden watering — effortless one-button operation
- 👨🦳 Users who prefer powered convenience over manual cranking
- 🌸 Flower beds, vegetable gardens & lawn irrigation
- 🚗 Driveway & car washing
- 🪑 Patio & outdoor furniture cleaning
📐 Product Specifications
-
Model: RW-24-E
-
Net Weight: 24.2 lbs
-

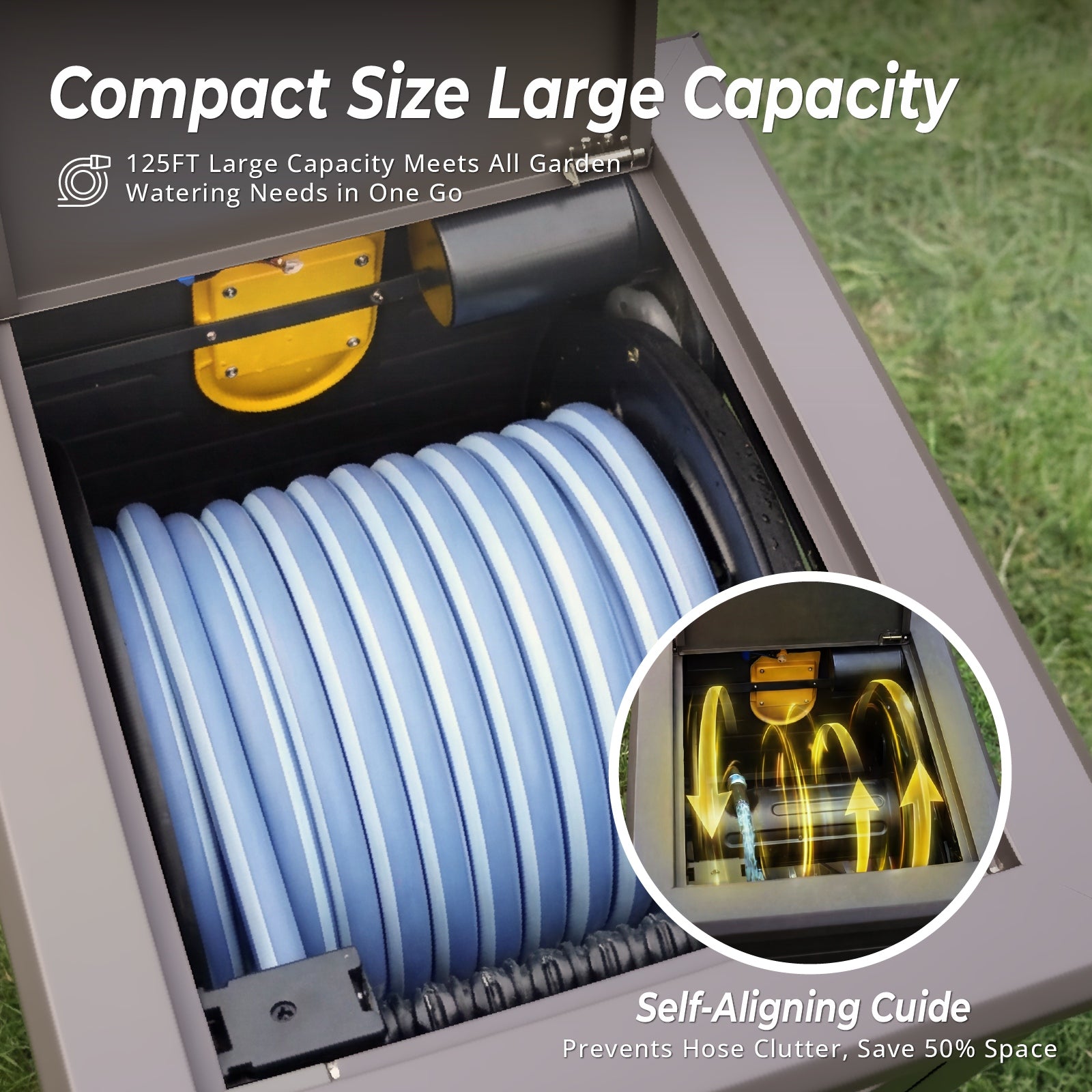

Hose Capacity: Up to 125ft x 5/8" (hose not included)
-
Material: Heavy-duty rust-resistant steel cabinet
-
Mount Type: Free-standing (leg-supported)
-
Power: DeWalt 20V MAX battery (not included)
-
Compatible Batteries: DeWalt XR DCB203 (2.0Ah) / DCB182 (4.0Ah)
-
Operating Temperature: 32–104°F (0–40°C)
-
Max Working Pressure: 100 psi
📦 What's in the Box
- A — Instruction Manual
- B — Hardware Pack (B.1 × 4 leg screws, B.2 × 1 crank screw)
- C — Leader Hose
- D — Hose Reel (Electric Metal Cabinet)
- E — Crank Handle
- F — Legs × 4
Note: DeWalt battery and charger are NOT included.
⚠️ Safety Warnings
- Do NOT use in rain or wet conditions.
- Do NOT spray the hose box with water when the battery hatch is open.
- Do NOT spray water into the feed compartment of the hose box.
- Do NOT reach into the feed compartment — risk of pulling in and crushing. Keep fingers, hair, clothing, and objects away from the hose and feed compartment.
- Do NOT hold the hose firmly when it is being fed in.
- Install the ground peg before rewinding — without it, the reel may move or overturn during automatic retraction.
- Do NOT use the product while the battery is charging.
- Do NOT use modified or damaged batteries.
- Keep children away from the battery and hose feed.
- Freezing temperatures can damage the hose, reel, and pipes — drain all water before winter storage.
✨ Relhost — Gathering for Blooming.
📄 Product Manual
Download the full installation and user guide: RW-24-E User Manual (PDF)
❓ Frequently Asked Questions
Q: Which DeWalt batteries are compatible?
A: This product is compatible with DeWalt XR DCB203 (20V Max 2.0Ah 36Wh) and DeWalt XR DCB182 (20V Max 4.0Ah 72Wh) batteries. Battery and charger are not included and must be purchased separately.
Q: Is a garden hose included?
A: No. The garden hose is NOT included. The cabinet accommodates up to 125ft x 5/8" standard hose (sold separately). A leader hose is included to connect the reel to your water spigot.
Q: How does the electric rewind work?
A: Press the button on the control panel to start automatic hose retraction. Press again to stop at any time. If an obstacle is encountered, the self-protection system will automatically stop rewinding — clear the obstacle and press the button again to continue.
Q: Can I still use it manually if the battery runs out?
A: Yes. The included crank handle allows full manual operation at any time, regardless of battery status.
Q: How do I read the battery level?
A: After pressing the rewind button, the LED panel shows: Red+Yellow+Green = 70–100%, Red+Yellow = 30–70%, Red only = 0–30%. If the error light (⚠️) is solid, there is an internal circuit issue. If it is flashing, the battery is too hot — allow it to cool before use.
Q: How do I charge the battery?
A: Open the battery hatch, press the release button on the battery, and remove it from the holder. Close the hatch. Charge using a DeWalt-compatible charger. Charge only at ambient temperatures between 0–45°C. Allow the battery to cool for at least 30 minutes after use before charging.
Q: What is the ground peg and why is it important?
A: The ground peg (G) must be installed before using the electric rewind function. Without it, the reel may move or overturn during automatic retraction due to the motor force.
Q: What if the hose feed does not start or stops mid-retraction?
A: The battery or product temperature may be out of range. Wait until the temperature is between 0–40°C. Also check for moisture between the battery contacts — dry with a clean cloth if needed.
Q: Can this be used in the rain?
A: No. Do NOT use in rain or wet conditions. Do NOT spray water when the battery hatch is open or into the feed compartment.
Q: How do I install the stop-ball?
A: Rotate the crank handle to rewind the hose to your desired length. Place the two semi stop-ball parts around the hose at the desired position and screw them together. Use the inner diameter adjusting gaskets as needed: for 5/8" standard hose (22mm OD) — no gasket needed; for wide hose of hose reel (18mm OD) — use 1 gasket; for standard hose of hose reel (16mm OD) — use 2 gaskets.
Q: What is the warranty on this product?
A: Relhost offers a 2-year quality warranty. Contact us at sales@relhosttools.com with your order number and photos of the issue.
Q: Where can I download the installation manual?
A: Download the RW-24-E User Manual (PDF) directly from this page.
