Retractable Air Hose Reel | Alloy Steel, 3/8" x 50ft, Dual Arm

🔧 Retractable Air Hose Reel — 3/8" x 50ft, Alloy Steel, Auto Rewind

The Relhost RA-19 Retractable Air Hose Reel delivers 50ft of reach with heavy-duty alloy steel construction, built for home garages, professional workshops, and industrial use. Auto-rewind keeps your workspace clean and your hose always ready — no more tangled air lines on the floor.

Available in two configurations: With 180° Swivel Bracket (wall/ceiling mount included) or Without Bracket (reel only, for custom mounting setups).

🔒 Locks Securely at Any Length

The free-locking mechanism lets you stop and lock the hose at any point along its 50ft length. To retract, pull out 100–200mm and release — the hose winds back smoothly and evenly. Note: at least 15" must be extended before retraction is triggered.

🎯 Adjustable Stop-Ball — No Tools Required

Set your preferred maximum hose extension with the tool-free stop-ball. Pull the hose to the desired length, open the latch on the stop-ball, slide to position, and re-latch. Always ensure the reel is locked before adjusting.

🔄 Smooth Auto-Rewind System

A gentle tug triggers smooth, controlled retraction. Always hold the hose throughout the entire retraction process — never release mid-retraction. When the yellow tape appears, stop pulling immediately — this marks the end of the hose.

🔄 Adjustable Roller Bracket

The roller bracket can be adjusted to the optimal angle for smooth hose operation. Loosen the three screws on each side with a 5/16" (8mm) wrench, rotate to the desired position, then re-tighten.

🏗️ Heavy-Duty Alloy Steel Construction

Built with corrosion-resistant alloy steel that handles daily workshop use, impact, heat, and wear. The hybrid air hose is designed for high-pressure pneumatic tools and compressors.

🔧 180° Swivel Wall/Ceiling Bracket (With Bracket variant)

The included 180° swivel bracket mounts to walls or ceilings, giving you full range of motion around your workspace. Installation requires a 3/8" drill bit for plastic anchors. Mounting hole spacing: 75mm × 75mm (2.95" × 2.95"). Ensure there are no live electrical wires or plumbing at the drilling location before starting.

🏕️ Ideal For

• 🔧 Home garages & DIY workshops
• 🏭 Professional auto repair shops
• 🛠️ Pneumatic tool operation (impact wrenches, nail guns, spray guns)
• 💨 Air compressor stations
• 🏢 Commercial & light industrial use

📐 Product Specifications

• Model: RA 19-15D-50FT (Without Bracket) / RA 19-15DS-50FT (With Bracket)
• Product Dimensions (L×W×H): 13.1" × 8.07" × 15.7" (33.3 × 20.5 × 39.9 cm)
• Net Weight: 17.6 lbs (8 kg)
• Hose Length: 50ft + 6ft lead hose
• Hose Diameter: 3/8"
• Hose Type: Hybrid Air Hose
• Material: Alloy Steel Reel
• Max Working Pressure: 300 psi
• Working Temperature: 23–140°F (-5–60°C)
• Mount Type: 180° Swivel Wall/Ceiling Bracket (With Bracket variant)
• Bracket Hole Spacing: 75mm × 75mm (2.95" × 2.95")

📦 What's in the Box

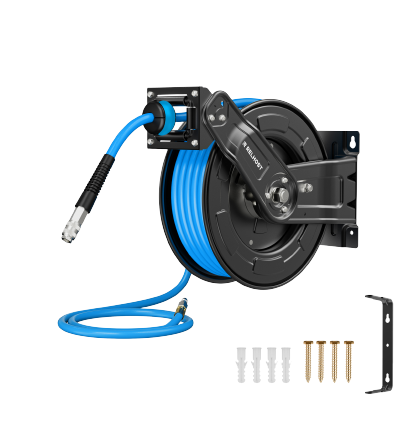

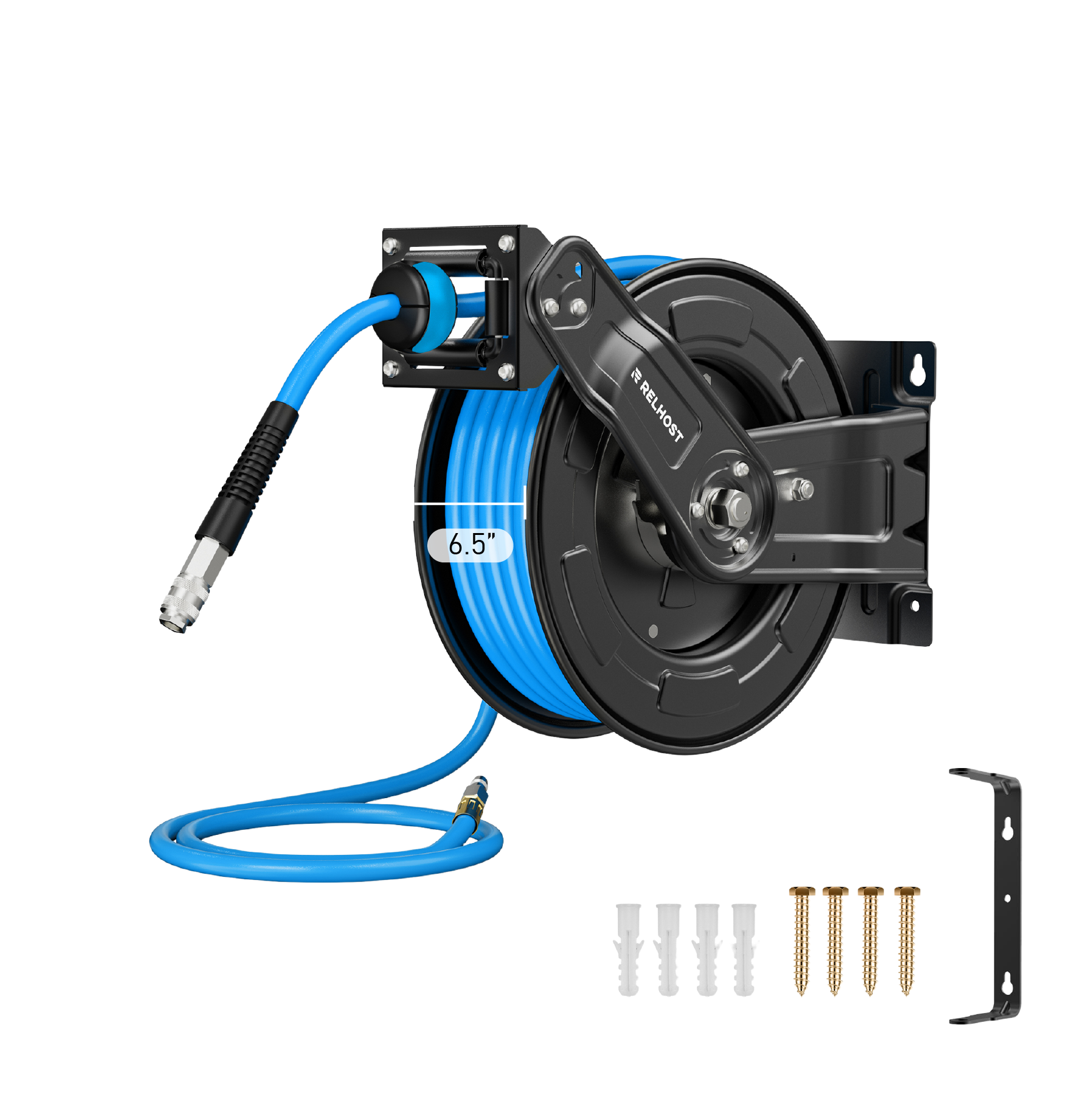

With Swivel Bracket:

• A — 180° Mounting Bracket
• B — Hardware Pack
• C — Instruction Manual
• D — Lead Hose
• E — Retractable Hose Reel

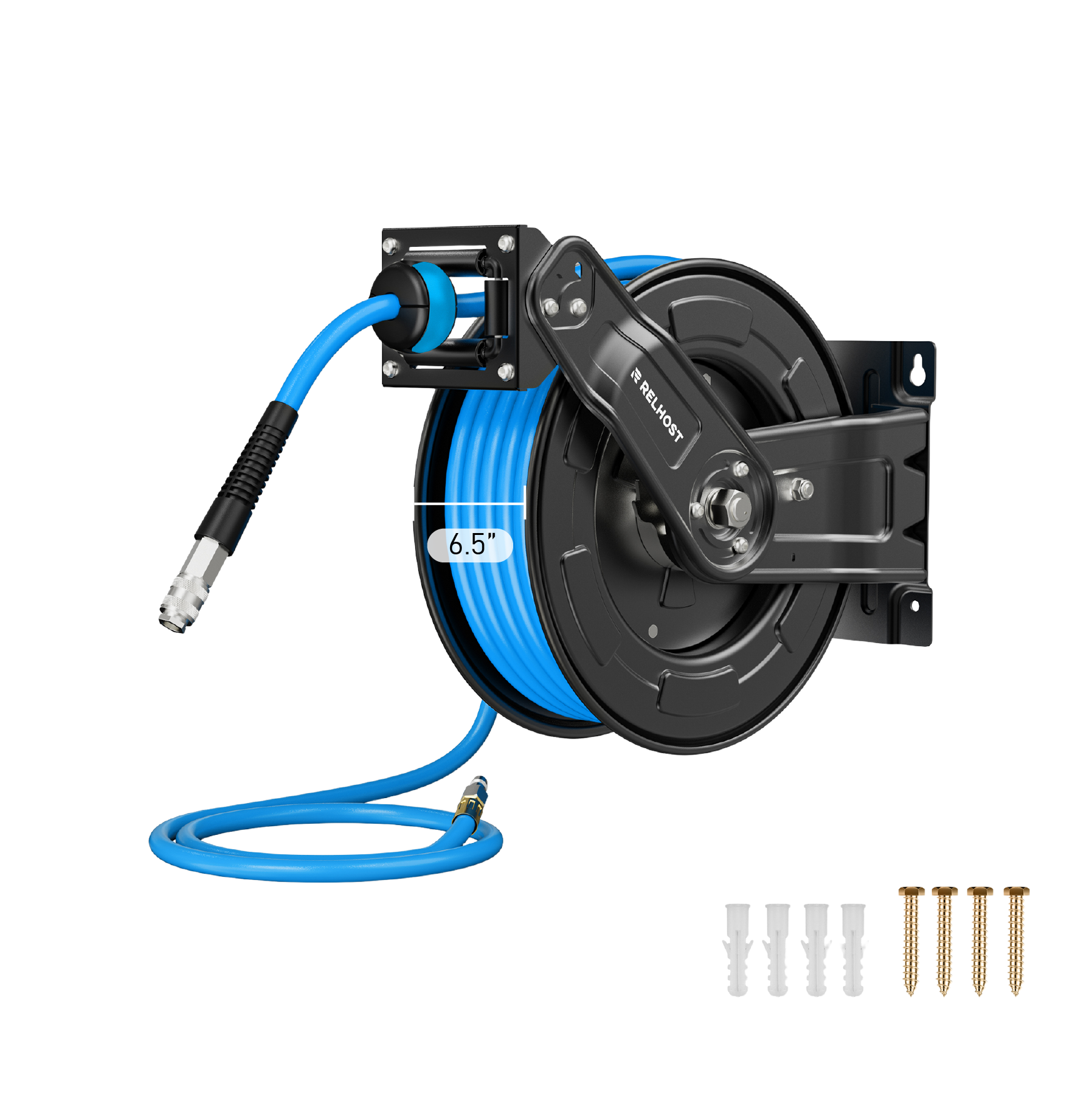

Without Bracket:

• A — Retractable Hose Reel
• B — Hardware Pack
• C — Instruction Manual
• D — Lead Hose

⚠️ Safety Warnings

• Never remove the side cover while the hose is under tension — serious injury could occur.
• Always hold the hose until it completely retracts. Never release mid-retraction.
• Stop pulling when the yellow tape appears — this marks the end of the hose.
• Do NOT exceed 300 psi maximum working pressure.
• Ensure the reel is firmly mounted before pressurizing.
• Wear eye protection when mounting and using this product.
• Ensure there are no live electrical wires or plumbing at the drilling location.

✨ Relhost — Built for the workshop, designed to last.

📄 Product Manuals

• With Swivel Bracket — RA19-15DS User Manual (PDF)
• Without Bracket — RA19-15D User Manual (PDF)

❓ Frequently Asked Questions

Q: What is the difference between the "With Bracket" and "Without Bracket" variants?
A: The With Bracket variant includes a 180° swivel wall/ceiling mounting bracket and all necessary hardware. The Without Bracket variant includes the reel only — ideal if you have an existing mounting setup or prefer a custom installation.

Q: What is the maximum air pressure this reel can handle?
A: The maximum working pressure is 300 psi. Do not exceed this limit with any attachments or tools connected to the hose.

Q: What type of hose does this reel use?
A: This reel uses a hybrid air hose (3/8" diameter, 50ft) which is flexible, lightweight, and suitable for most pneumatic tools. A 6ft lead hose is also included to connect the reel to your air compressor.

Q: How does the locking mechanism work?
A: Pull the hose to your desired length — it locks automatically. To retract, pull out 100–200mm and release. At least 15" must be extended before retraction can be triggered.

Q: How do I adjust the stop-ball?
A: Ensure the reel is locked. Open the latch on the stop-ball, slide it to the desired position along the hose, and re-latch. No tools required.

Q: How do I adjust the roller bracket angle?
A: Loosen the three screws on each side of the roller bracket using a 5/16" (8mm) wrench. Rotate the bracket to the desired angle, then re-tighten all three screws on each side.

Q: Can this be mounted on a ceiling?
A: Yes. The 180° swivel bracket (included with the With Bracket variant) supports both wall and ceiling mounting.

Q: What drill bit size do I need for installation?
A: Use a 3/8" drill bit for the plastic anchors. The mounting hole spacing is 75mm × 75mm (2.95" × 2.95").

Q: Is it safe to let go of the hose during retraction?
A: No. Always hold the hose throughout the entire retraction process. Releasing mid-retraction can cause the hose to snap back at high speed, potentially causing serious injury.

Q: The hose will not retract completely — what should I do?
A: Turn off the air supply and release pressure. Ensure the reel is securely mounted. Pull the hose out to its full length to untwist it, then hold it as it retracts. Pull out slightly more than needed at a time to avoid slack buildup.

Q: Where can I download the installation manual?
A: Download the RA19-15DS Manual (With Bracket) or the RA19-15D Manual (Without Bracket) directly from this page.
