Retractable Heavy Duty Garden Hose Reel, 115 ft x 5/8 in, Dark Grey

Why Choose the Relhost Retractable Hose Reel?

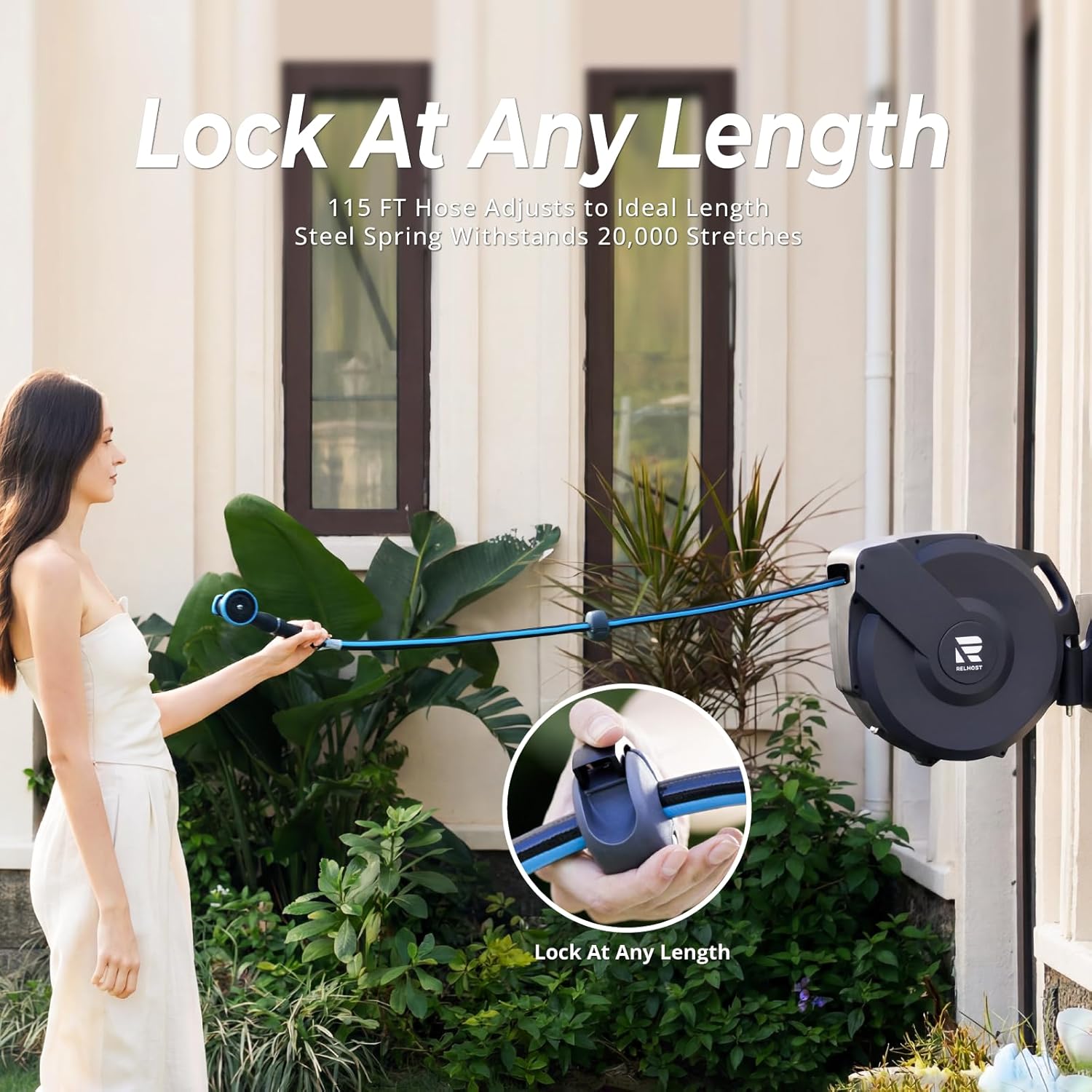

🔒 Any-Length Locking Mechanism

Stop struggling with stubborn hoses. Our free-locking system allows you to pull the 115ft, 5/8" hose to your exact desired length and lock it instantly. Whether you're watering a nearby flower bed or the far corner of your garden, get the perfect reach every time.

🌀 Smooth, Hands-Free Retraction

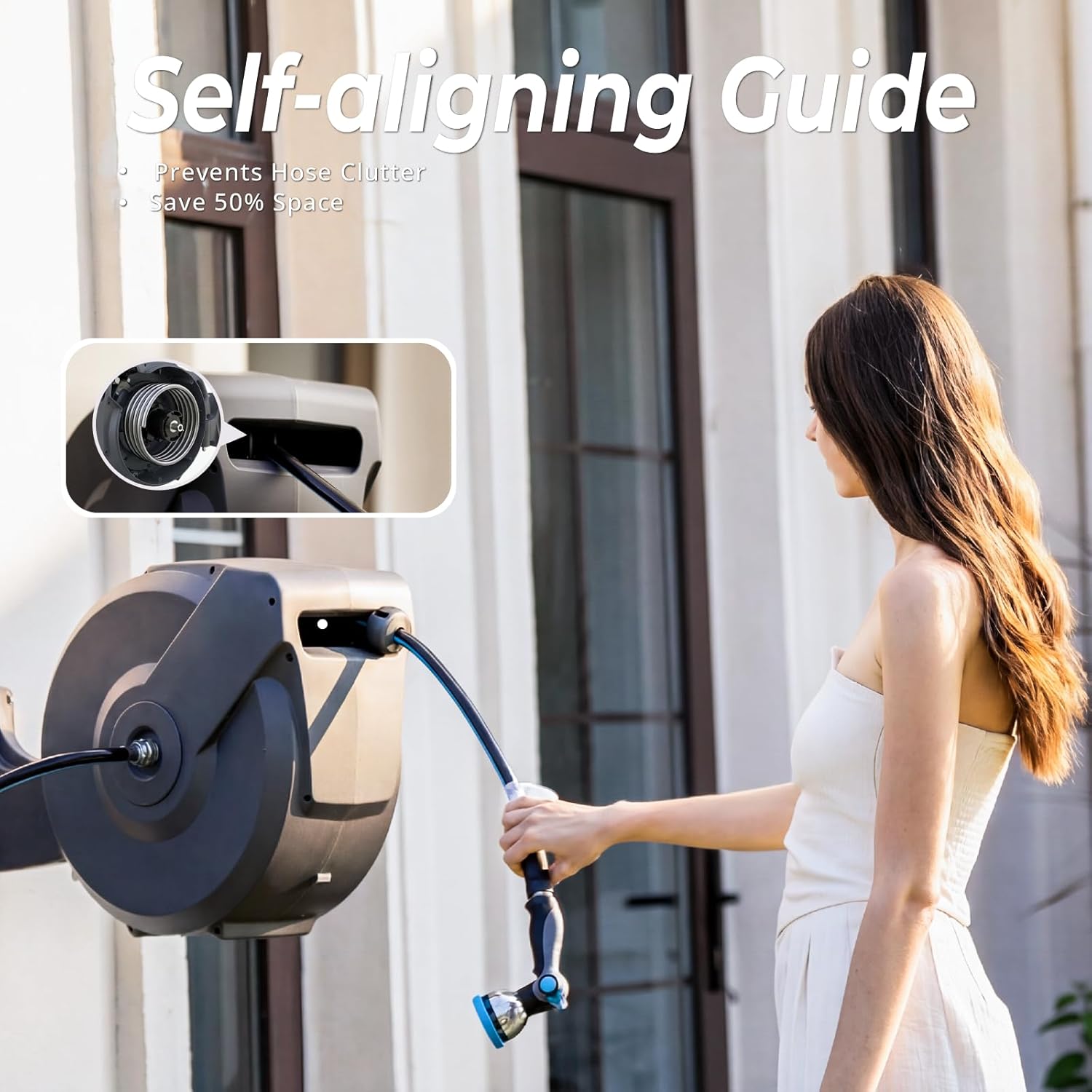

Say goodbye to messy piles and heavy lifting. A gentle tug is all it takes for the hose to retract slowly and safely. The upgraded internal guide ensures a kink-free, tangle-free wind-up, keeping your garden tidy without the manual effort.

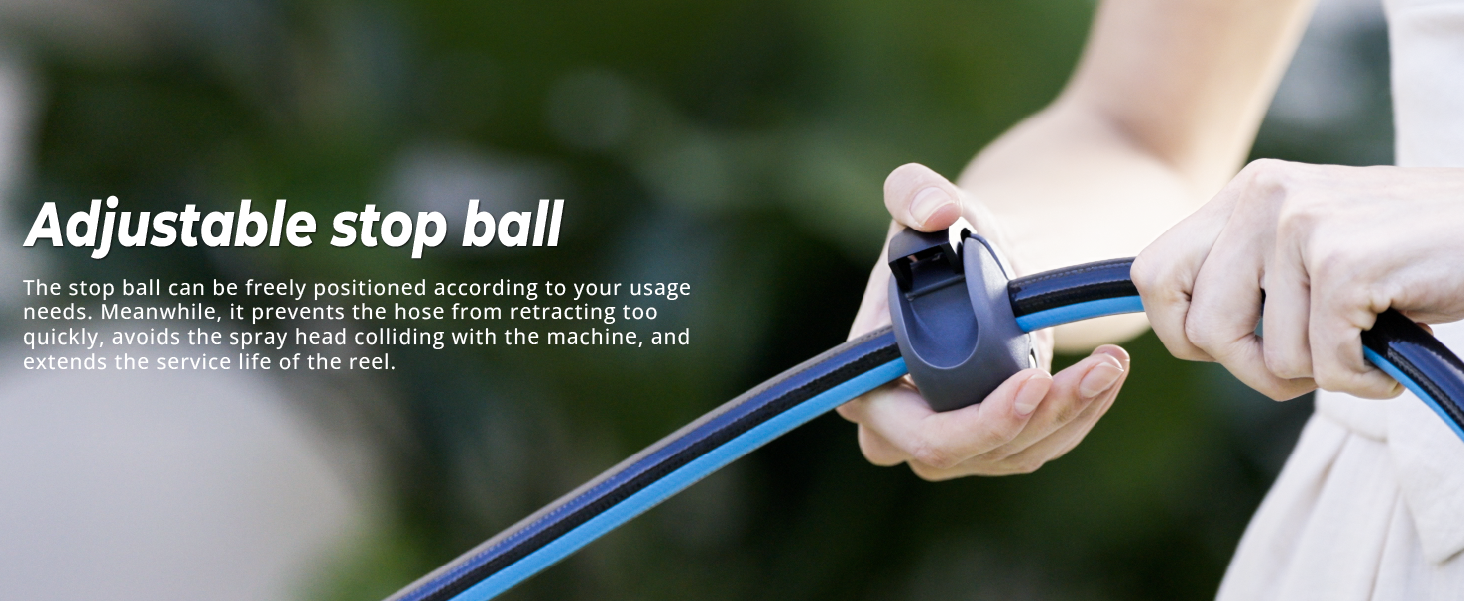

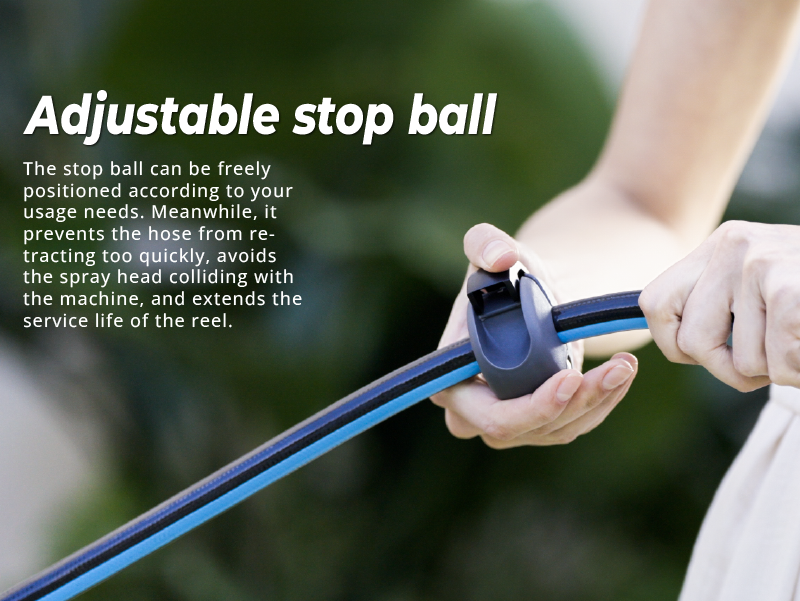

🎯 Adjustable Stop-Ball for Precise Length Control

The stop-ball position can be adjusted without any tools to ensure the hose is always within your desired reach. Simply pull the hose to the desired length, open the latch on the stop-ball, slide it to your preferred position, and re-latch — no tools needed.

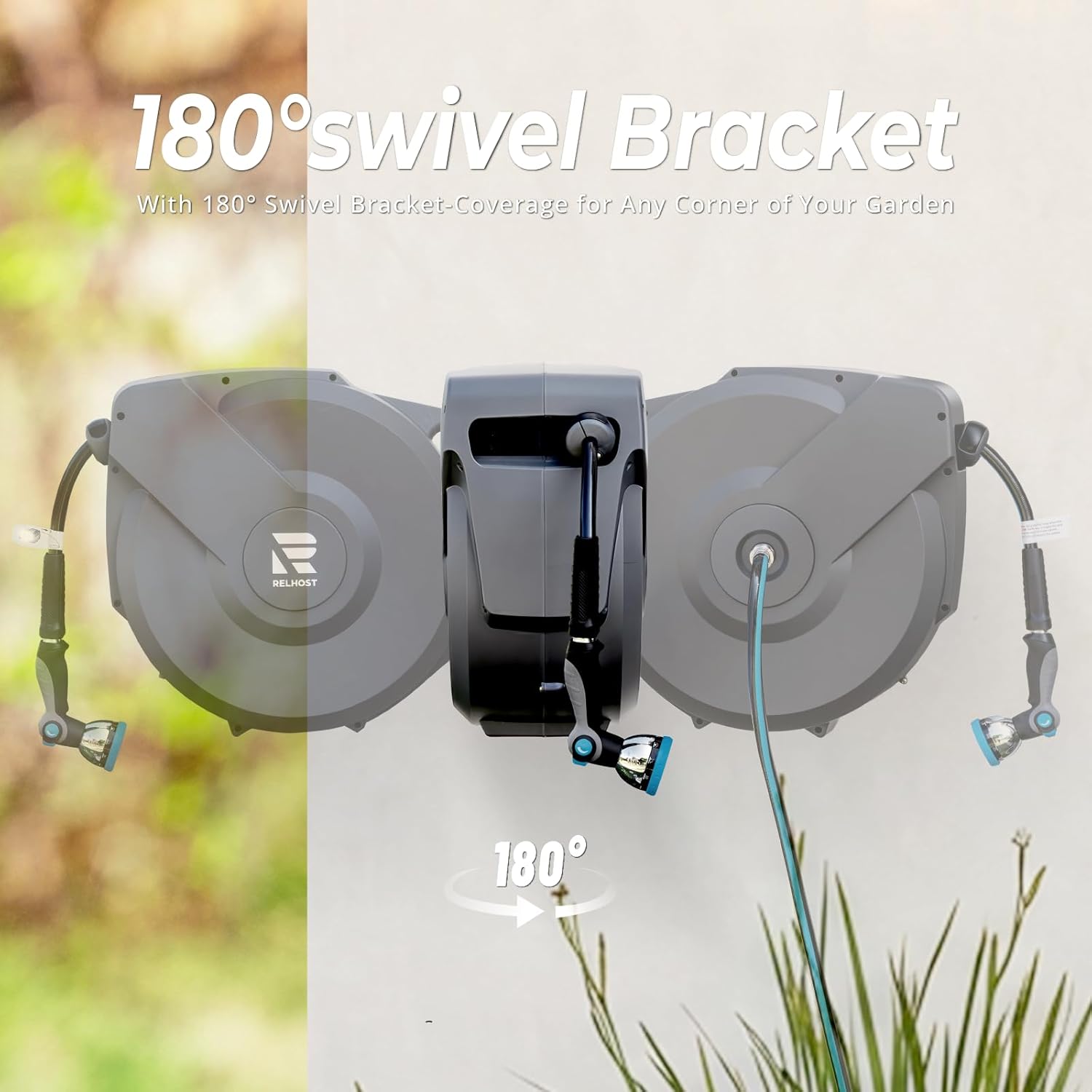

💪 Heavy-Duty 180° Swivel Bracket

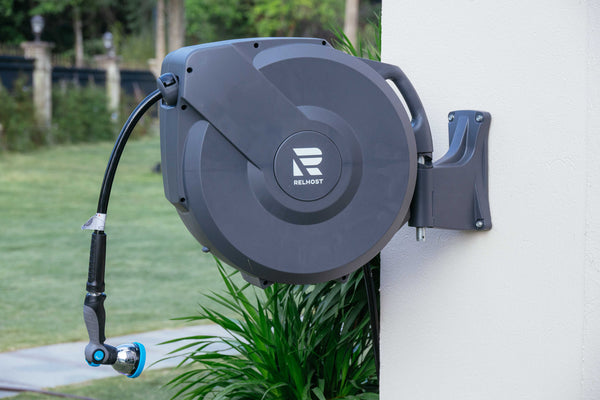

Built with an upgraded metal bracket for maximum durability, the reel rotates 180°, following your movement to prevent kinks while watering. Need to store it for winter? The quick-release design and ergonomic handle make it effortless to lift and move.

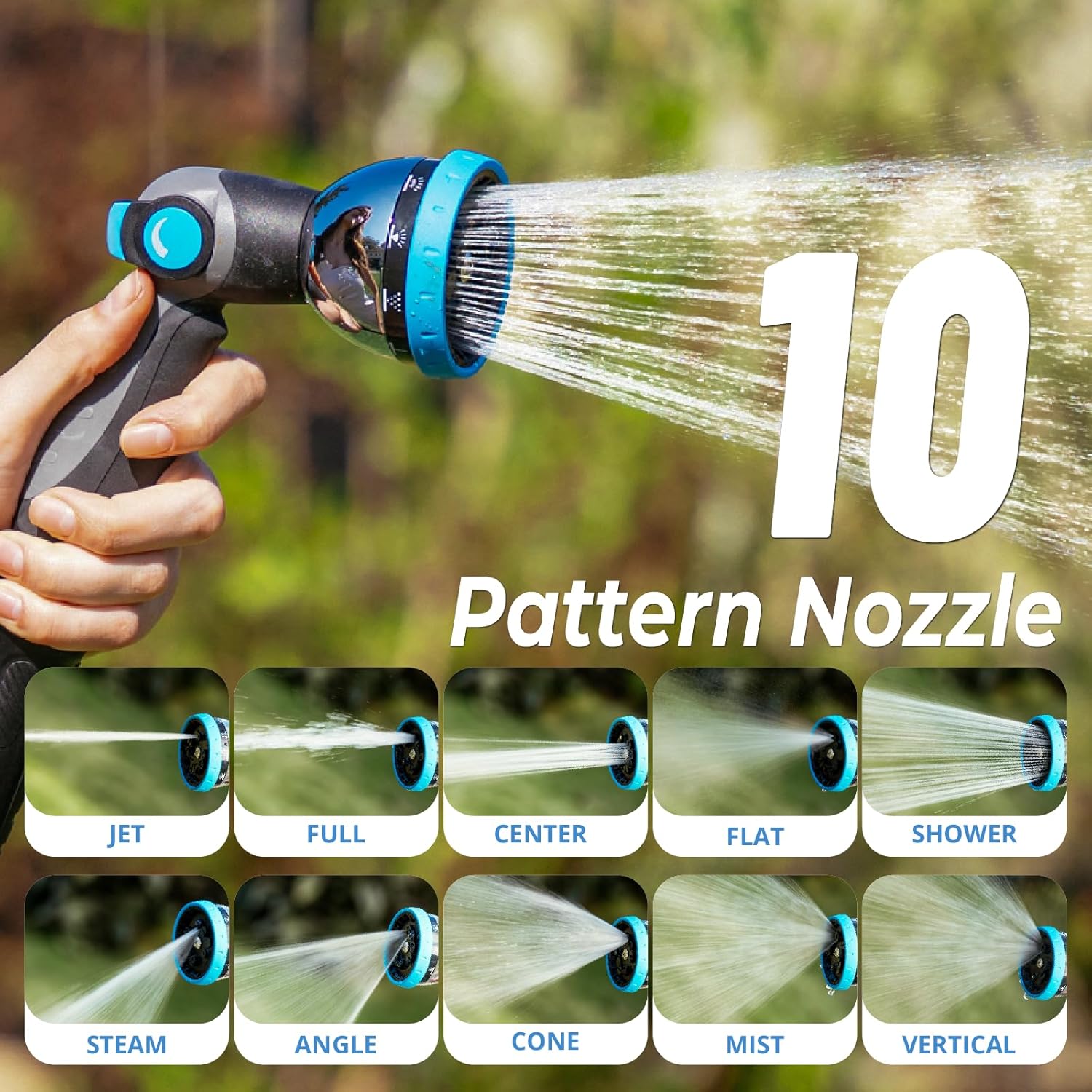

🚿 10-Pattern Versatile Spray Nozzle

From a powerful Jet for cleaning the driveway to a gentle Mist for delicate seedlings, our 10-pattern nozzle covers it all. Perfect for car washing, pet bathing, and professional-grade gardening.

🛡️ All-Weather Durability

Engineered for the elements. The hose features a three-layer reinforced structure (High-tenacity PVC and fiber), while the outer casing is built from impact-resistant, UV-stabilized Polypropylene. Leak-proof, crack-proof, and built to last. Working temperature range: 23–104°F (-5–40°C). Max working pressure: 150 psi.

⏱️ 5-Minute Setup

Get started in no time. Mount the bracket to any wall or timber post with the included heavy-duty screws at a recommended height of 32" (80cm) from the ground, connect to your tap via the included 6.5ft leader hose, and you're ready to go.

Product Specifications:

• Hose Length: 115 ft + 6.5 ft leader hose (35m + 2m)
• Hose Diameter: 5/8 inch
• Product Dimensions: 25.20" x 10.24" x 18.31" (64 x 26 x 46.5 cm)
• Net Weight: 33.7 lbs (15.3 kg)
• Material: Reinforced PVC (Hose) | Impact-Resistant PP (Casing)
• Rotation: 180° Wall Mount
• Working Temperature: 23–104°F (-5–40°C)
• Max Working Pressure: 150 psi
• Nozzle Patterns: 10 (Angle, Center, Shower, Full, Soaker, Jet, Mist, Cone, Vertical, Flat)

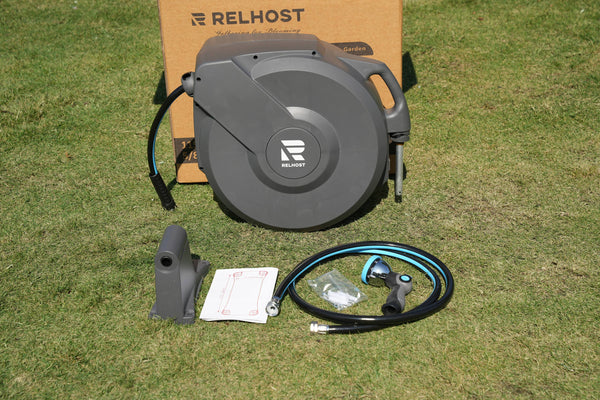

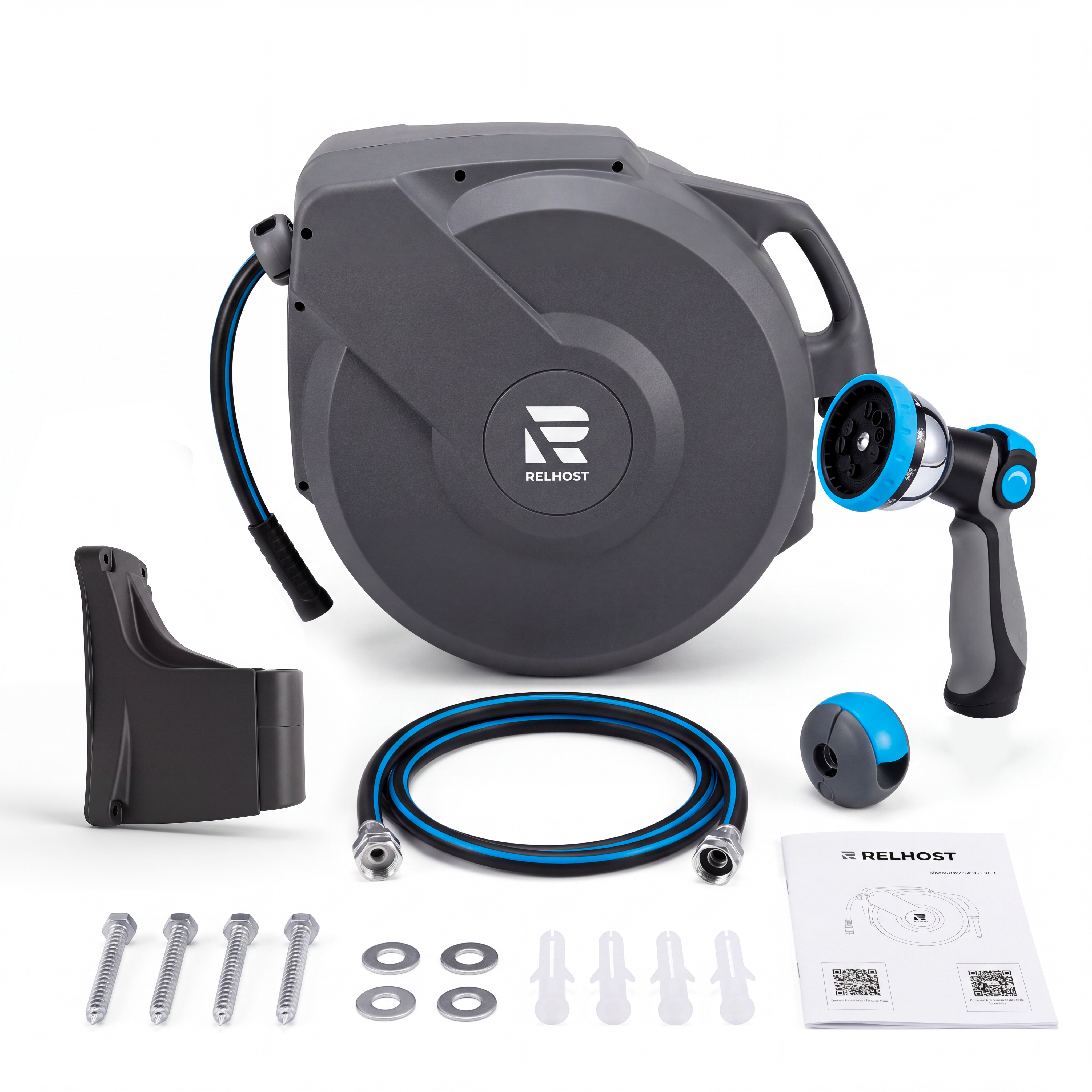

📦 What's in the Box

• A — Instruction Manual
• B — Hardware Pack
• C — Hose Reel
• D — Wall Bracket
• E — Spray Gun

📄 Product Manual
Download the full installation and user guide: RW-22-405-115 User Manual (PDF)

❓ Frequently Asked Questions

Q: What hose length and diameter does this reel support?
A: This reel comes with a 115 ft (35m) x 5/8 inch reinforced PVC hose, plus a 6.5 ft (2m) leader hose to connect to your water source.

Q: How does the locking mechanism work?
A: Simply pull the hose to your desired length — it locks automatically at any point. To retract, give a short tug of 100–200mm and the hose smoothly winds back into the reel.

Q: What is the stop-ball and how do I adjust it?
A: The stop-ball controls where the hose locks when extended. To adjust: pull the hose to the desired length, open the latch on the stop-ball, slide it to your preferred position, and re-latch. No tools required.

Q: Does the reel retract automatically?
A: Yes. A gentle tug triggers smooth, slow, hands-free retraction. Always hold the hose during retraction — never let go mid-retraction as the hose may snap back at speed.

Q: What is the swivel range of the wall bracket?
A: The heavy-duty metal bracket rotates 180°, allowing you to water in any direction without repositioning the reel or causing kinks.

Q: At what height should I install the hose reel?
A: We recommend installing the bracket at approximately 32" (80cm) from the ground for optimal use and comfortable operation.

Q: Can I mount this on a timber post as well as a wall?
A: Yes. For wall mounting, use a 10mm (3/8") masonry drill bit. For timber posts, use a 3mm (1/8") drill bit. All necessary hardware is included.

Q: What spray patterns does the nozzle offer?
A: The included 10-pattern nozzle covers: Angle, Center, Shower, Full, Soaker, Jet, Mist, Cone, Vertical, and Flat — suitable for watering, cleaning, car washing, and pet bathing.

Q: Is this hose reel suitable for outdoor use in all seasons?
A: Yes, within a working temperature range of 23–104°F (-5–40°C). We recommend storing it indoors during freezing temperatures to extend its lifespan.

Q: The hose cannot be extended or retracted — what should I do?
A: Pull the hose firmly to its full length to untwist it completely, then hold the hose while walking back to allow it to retract smoothly.

Q: Water flow seems too small — how do I fix it?
A: Check the leader hose for visible creases. Turn on the spray gun and gradually pull out the hose to see if flow improves. If the issue persists, remove the spray gun to check if it is causing the restriction, and ensure the spigot is fully open.

Q: The hose will not retract completely — what should I do?
A: Turn off the spigot and press the spray gun to release pressure. Ensure the reel is securely mounted, then hold the stop-ball and pull the hose out fully to straighten it. Unlock and follow the hose as it retracts, pulling out slightly more than needed at a time to avoid slack.

Q: The hose is tangled — how do I fix it?
A: Pull the hose out to its full length to unwind any twists. Do not step on the hose. Always hold the hose during retraction to prevent it from rewinding freely on the ground.

Q: Where can I download the installation manual?
A: Download the RW-22-405-115 User Manual (PDF) directly from this page.

• 1pc Relhost Reel with 65FT Hose;
• 1pc Hose Nozzle;
• 1pc 9 Function Spray Nozzle;
• 1pc Wall mount;
• 4pcs bolts;
• 1pc User's Manual.
