FAQ
Is this a dual-arm air hose reel?
Yes. This is the 65 ft RA-19 dual-arm series, using the same dual-arm construction and mounting options as the 50 ft model.
What comes with each configuration?
With Bracket includes the retractable air hose reel, 180° mounting bracket, hardware pack, 5 ft lead hose, and instruction manual. Without Bracket includes the reel, hardware pack, 5 ft lead hose, and instruction manual.
How does the hose retract, and what is the maximum pressure?
Pull the hose to the length you need and it locks in place. To retract it, pull the hose out about 100–200 mm and release it while holding the hose. The maximum working pressure is 300 PSI.

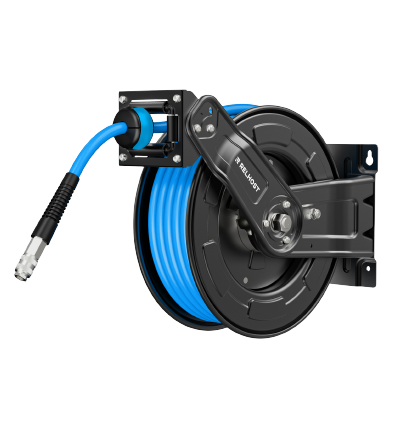

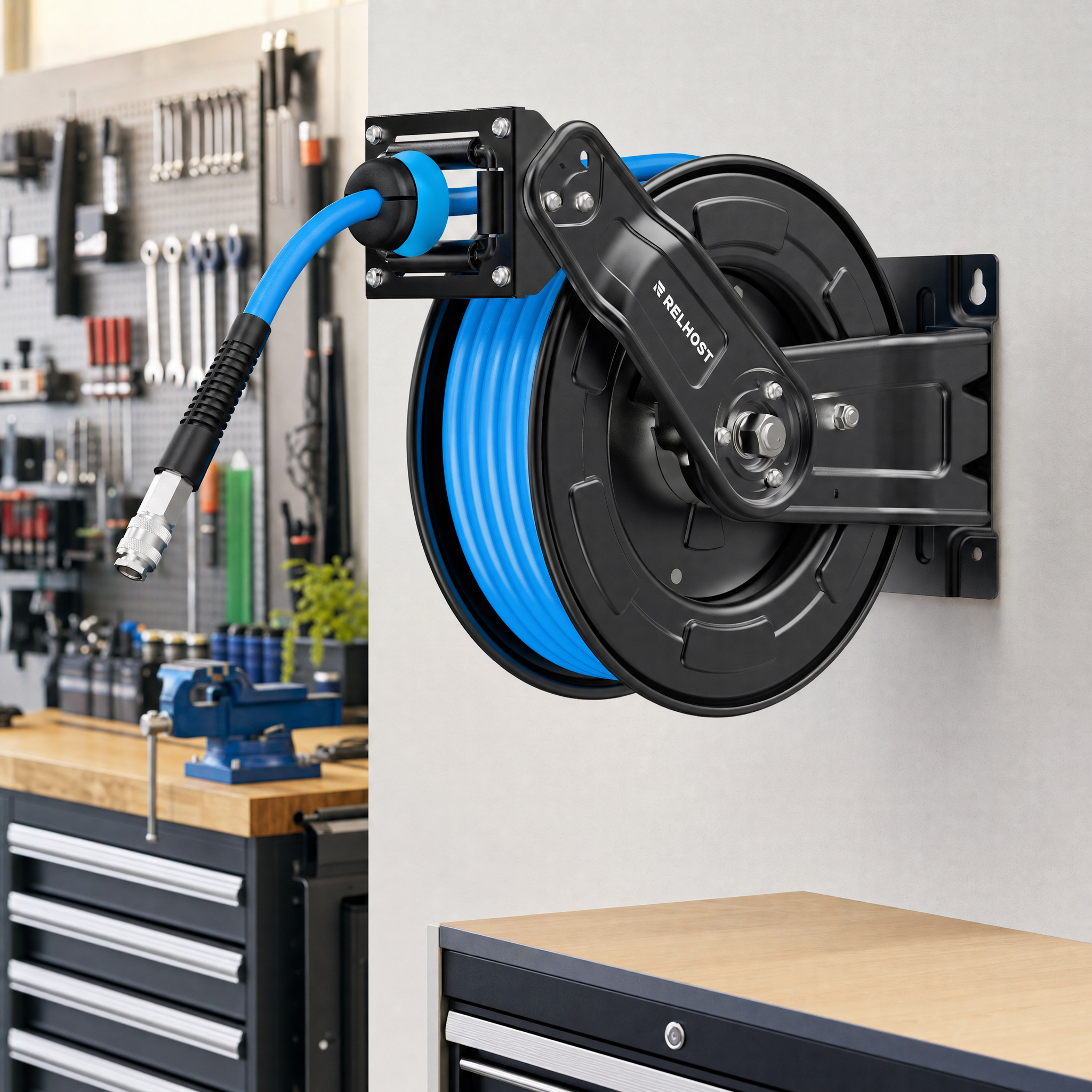

Cover more of your workspace without dragging an air hose across the floor. The RA-19 65 ft dual-arm retractable air hose reel uses the same confirmed construction and mounting options as the 50 ft dual-arm model, with extra reach for larger workshops.
Why Choose This Model
- 65 ft of reach: Gives you extra coverage when the work area is farther from the compressor or when one reel needs to serve a larger workspace.
- Dual-arm design: Supports flexible hose positioning around your work area.
- 180° mounting bracket option: The With Bracket configuration includes the bracket for wall mounting. The Without Bracket configuration is intended for an existing or custom mounting setup.

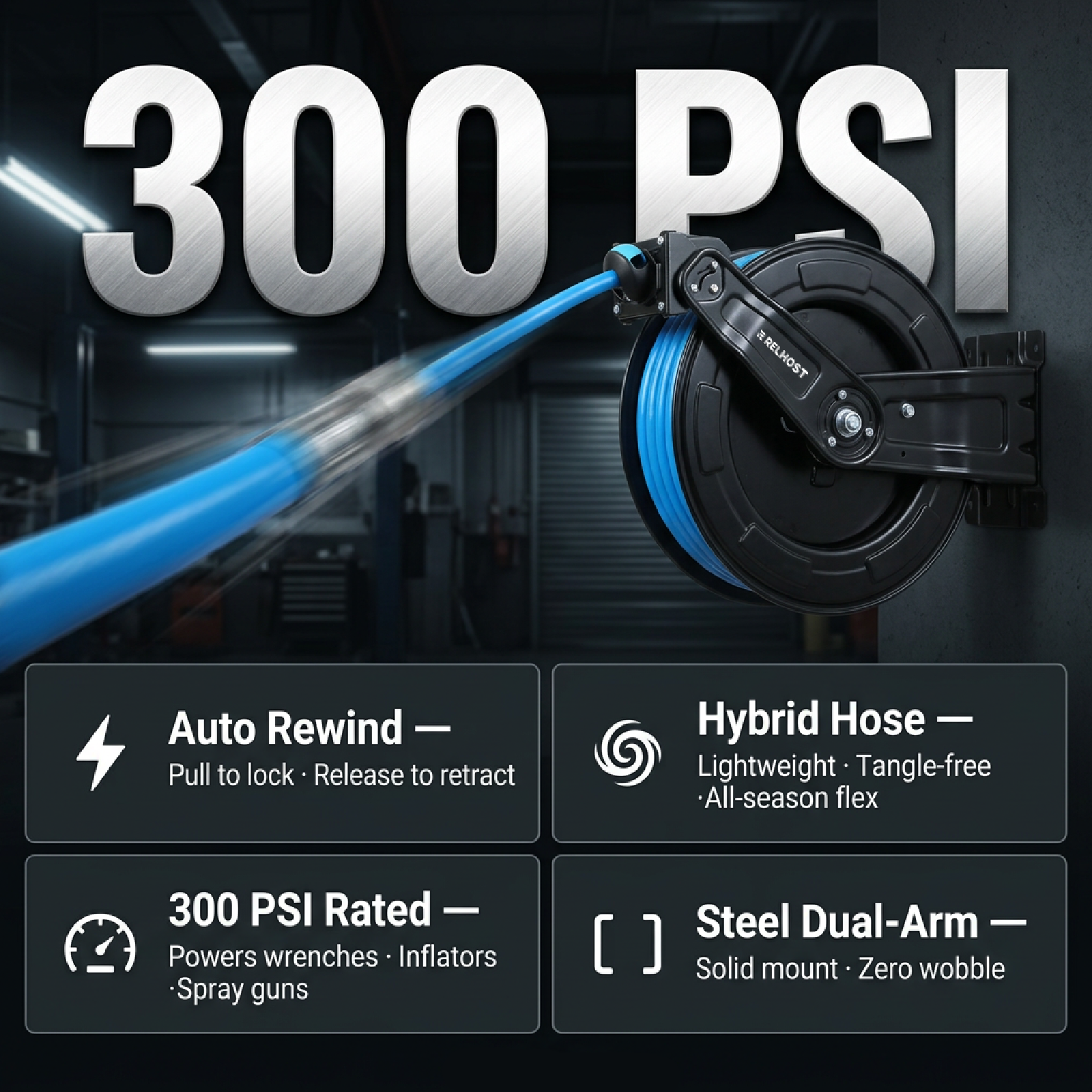

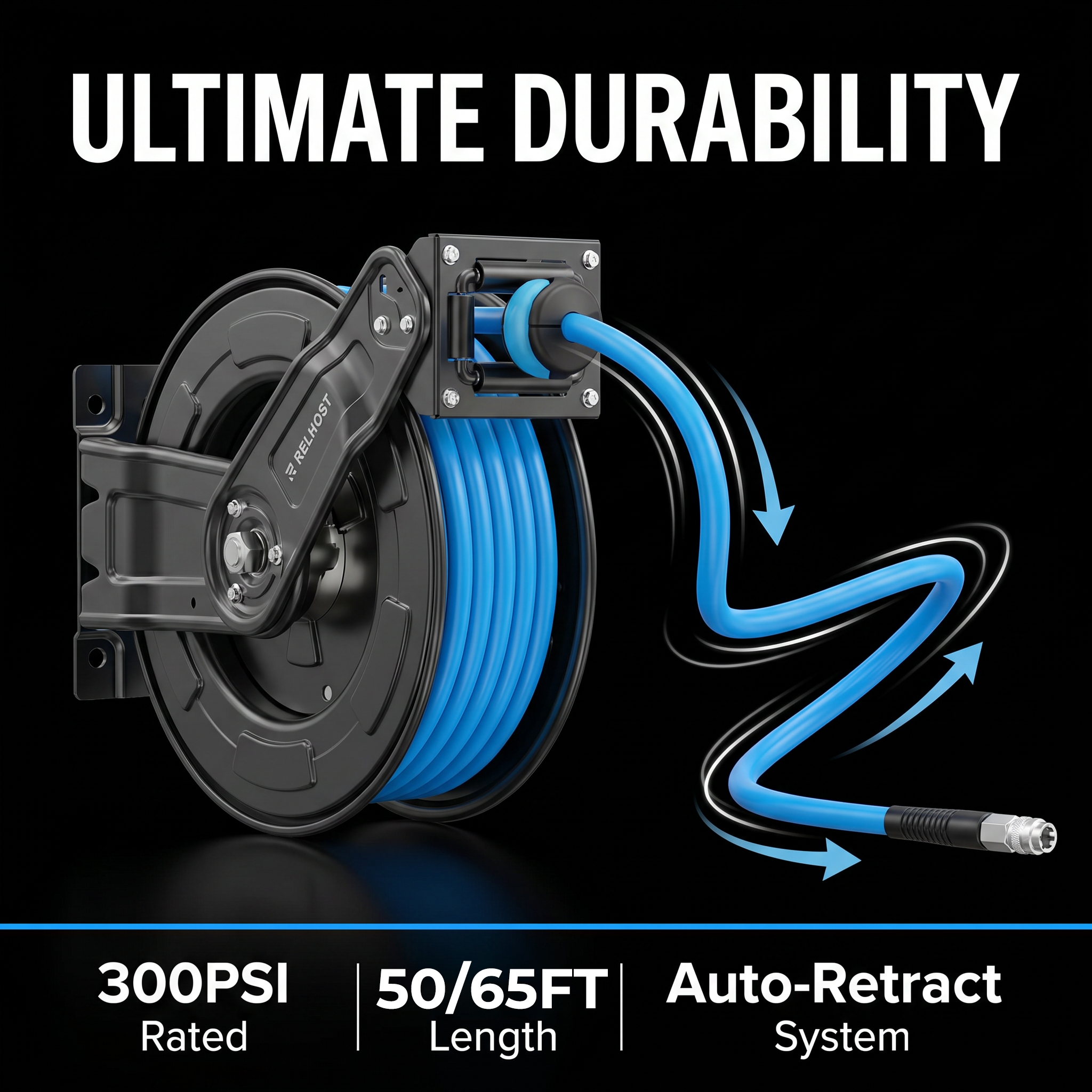

- Rubber air hose: The 3/8-inch hose is rated for a maximum working pressure of 300 PSI.
- Controlled retraction: Pull the hose out about 100–200 mm and release it while holding the hose.
- Adjustable stop-ball: Set the preferred maximum extension without tools.
- Adjustable roller bracket: Set the roller bracket to the angle or position that best guides the hose.
What’s Included

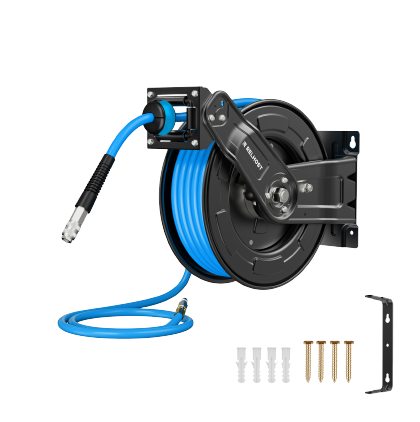

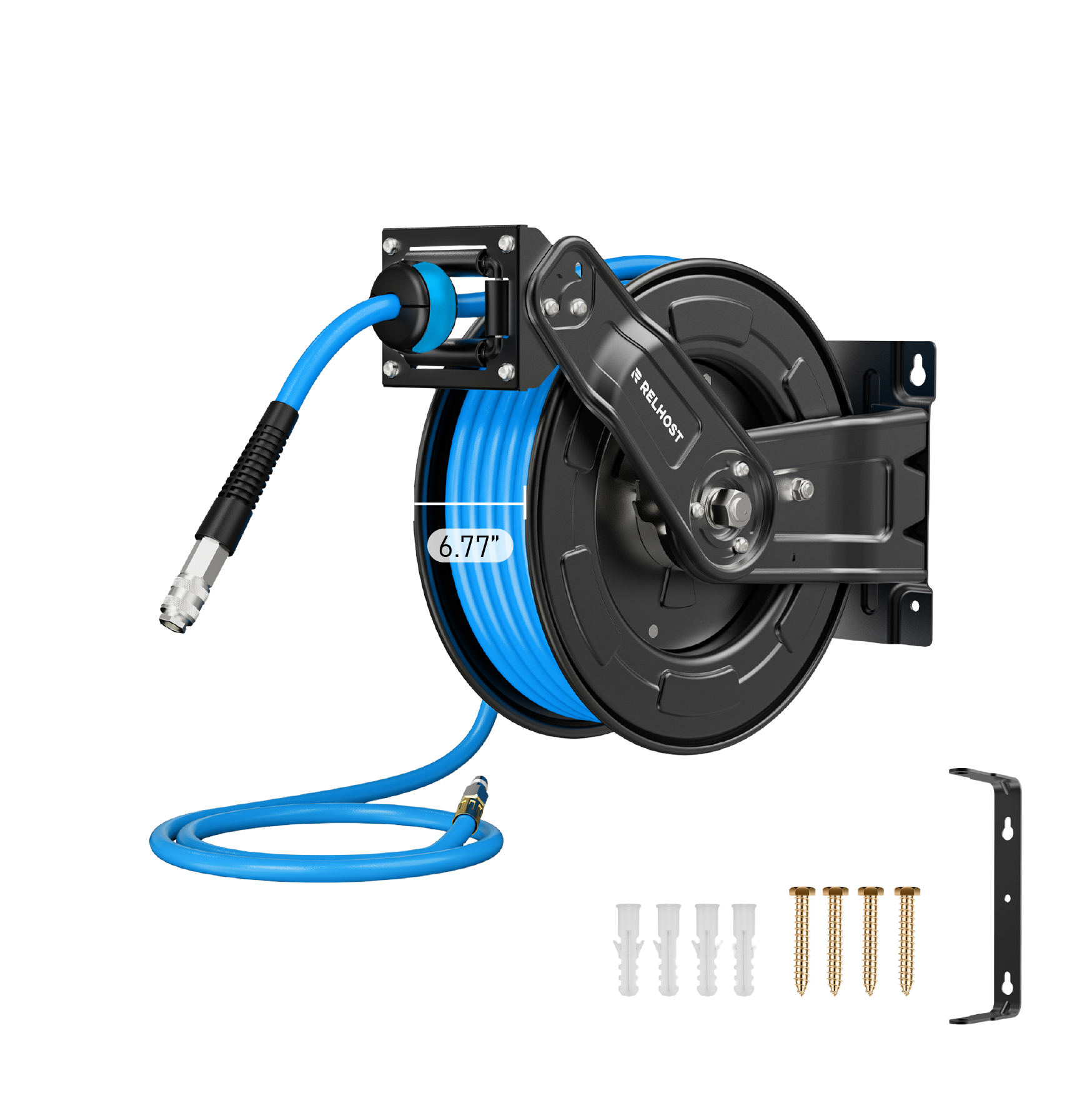

With Bracket
- Retractable air hose reel with 65 ft hose
- 180° mounting bracket
- Hardware pack
- 5 ft lead hose
- Instruction manual

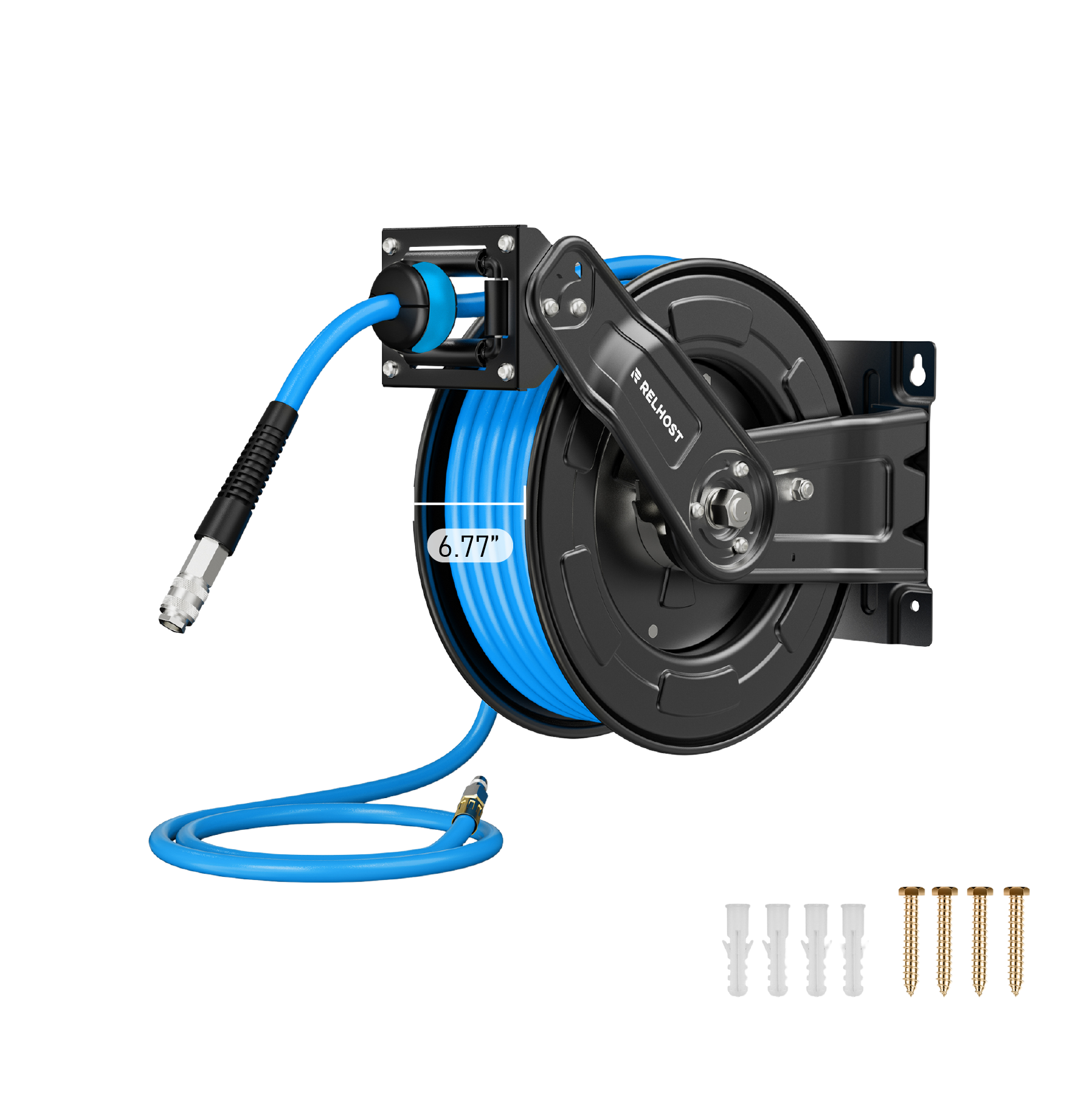

Without Bracket
- Retractable air hose reel with 65 ft hose
- Hardware pack
- 5 ft lead hose
- Instruction manual
Product Specifications
- Hose length: 65 ft, plus 5 ft lead hose
- Hose size: 3/8 inch
- Hose type: Rubber air hose
- Maximum working pressure: 300 PSI
- Working temperature: 23–140°F (-5–60°C)
Mounting
The With Bracket configuration includes a 180° mounting bracket for wall mounting. Use the mounting template and a 3/8-inch drill bit as described in the manual. Check the wall for electrical wires and plumbing before drilling, and make sure the reel is firmly mounted before pressurizing.
The Without Bracket configuration includes the reel and hardware pack for an existing or custom mounting setup.
How the Reel Works
Slowly pull the hose to the desired length. It locks automatically when you stop. To retract the hose, pull it out about 100–200 mm and release it while holding the hose. At least 15 inches of hose should be extended before retraction is triggered.
To adjust the stop-ball, make sure the reel is locked, open the latch, move the stop-ball to the desired position, and re-latch it.
Safety Information
- Do not exceed the 300 PSI maximum working pressure.
- Always hold the hose until it has completely retracted. Never release it during high-speed retraction.
- Never remove the side cover while the hose is under tension.
- Wear eye protection when mounting and using the product.
- Make sure the reel is firmly mounted before pressurizing.
